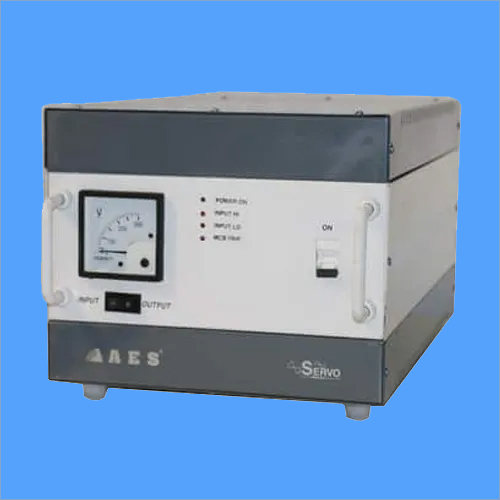

Single Phase Servo Voltage Stabilizer

Get a Price/Quote

MOQ : 1 , , Unit

Single Phase Servo Voltage Stabilizer Specification

Output Current
21A

Input Voltage
220-240 Volt (V)

Output Voltage
230 V 1%

Efficiency
Over 95%

Frequency (MHz)
50 Hertz (HZ)

Phase
Single Phase

Current
21A

Weight
32 kg approx.

Ambient Temperature
0C - 50C

Control System
Servo Motor Controlled

Usage
Residential, Commercial

Insulation Resistance
More than 2 M at 500V DC

Design
Floor / Table Mount

Voltage Protection
High & Low Voltage Cutoff

Display
Analog

Dimension (L*W*H)
430 x 325 x 640 mm

Rated Power
5 kVA

Current Type
AC

Waveform Distortion
Nil

Product Type
Voltage Stabilizer

Single Phase Servo Voltage Stabilizer Trade Information

Minimum Order Quantity
1 , , Unit

Payment Terms
Cash in Advance (CID)

Delivery Time
7-10 Days

Main Domestic Market
All India

About Single Phase Servo Voltage Stabilizer

Striving to maintain our prominent position in this competitive market, we are manufacturing and supplying Single Phase Servo Voltage Stabilizer. In order to offer clients with best quality products, we manufacture these using advanced components and machinery in compliance with the industry set guidelines. Our offered range is handy in protecting electronic devices against voltage fluctuations by providing a stabilized voltage output. Made as per the demands of clients, the Servo Voltage Stabilizer is used in a wide number of applications such as:

Telecommunication
Oil industries
Medical equipments
Cold storages

Other details:

Input	170vac - 270vac
Output	220vac + / - 0.5 - 1%
[Other Input Output Range Available On Request]
Frequency	50 Hz +/- 1 %
Rate of Correction	35v/sec.
Effciency	> 95 %
Power Factor	0.7 - unity
Distortion	Nil
Cooling	Natural
KVA Rating	0.5 - 10.0
Wave Form	Sinusoidal
Protections Short Circuit: Fuse / MCB Over Load: Fuse / MCB MFD Circuit: Built in Surge/Spike: Optional Time Delay: Optional Hi / Lo Cut Out: Optional
Indications: Power ON Input High Input Low Mains OK Fuse/MCB Blown/Trip
Features: Auto/Manual Facility Of Operation Built in Over load/short Ckt. Protection Improves Power Factor Ergonomically Rugged Construction Powder Coated Cabinet Isolated Output Available
Application: Computer, Xerox Machines, CNC Machine Photo Labs, PLCs, Water Purifying Plants Glass Cutting Machines, Medical Instruments Die Making Machines
Physical Size KVA	1.0	5.0	10.0
Weight	13	27	65
DimensionWxDxM [MM] {Approx}	250 x 320 x 165	280 x 345 x 230	255 x 300 x 540

Advanced Voltage Stabilization

Maintaining a steady voltage supply is critical for sensitive equipment. This servo stabilizer automatically corrects voltage fluctuations within seconds, ensuring devices receive smooth and safe power. The copper-wound transformer combined with precise servo motor control provides superior reliability and longevity.

Safety and Protection Features

Safety mechanisms like overload, short circuit, and over temperature protection safeguard both the stabilizer and connected devices. High and low voltage cutoffs further ensure electrical safety, and compliance with IS 9815 affirms adherence to stringent quality standards.

User-Friendly Design

Designed for easy installation, this stabilizer supports both table top and floor mounting. The clear analog display and LED/analog indicators assist in seamless monitoring, making it suitable for homes and businesses seeking efficient voltage management without complex setup.

FAQs of Single Phase Servo Voltage Stabilizer:

Q: How does the Single Phase Servo Voltage Stabilizer function in managing voltage fluctuations?

A: This stabilizer detects and automatically corrects voltage variations using a servo motor controlled system, ensuring output voltage remains at 230 V 1% and safeguards equipment from irregular power supply.

Q: What are the benefits of the air-cooled system compared to other cooling types?

A: Air cooling minimizes maintenance requirements, reduces operational noise to below 55 dB, and enhances stabilizer lifespan while maintaining reliable temperature control during continuous use.

Q: When should I consider installing this voltage stabilizer for my property?

A: Install this stabilizer when your premises experience regular voltage fluctuations, especially with sensitive appliances, to protect against power surges, minimize downtime, and ensure consistent device performance.

Q: Where is the ideal placement for the stabilizertable top or floor mount?

A: You can place the stabilizer either on a sturdy tabletop or the floor according to space availability. Its compact dimensions (430 x 325 x 640 mm) and rugged build support both mounting options for flexible installation.

Q: What protection features does the stabilizer offer to ensure safety?

A: It includes overload, short circuit, and over temperature protection. Additionally, high and low voltage cutoffs help prevent electrical damage to connected equipment during abnormal voltage events.

Q: How is the voltage correction process indicated and monitored?

A: Voltage levels and corrections are displayed in real-time using analog meters or LED indicators located on the cabinet, allowing users to monitor performance at a glance.
