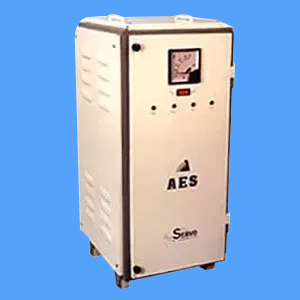

Air Cooled Servo Stabilizer

Get a Price/Quote

MOQ : 1 Unit

Air Cooled Servo Stabilizer Specification

Input Voltage
220-240 Volt (V)

Phase
Single Phase

Warranty
Yes

Control System
Automatic

Display
LED

Product Type
Air Cooled Servo Stabilizer

Air Cooled Servo Stabilizer Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

About Air Cooled Servo Stabilizer

With our transparent business deals, we have acquired a prominent position in the business of manufacturing and supplying Air Cooled Servo Stabilizer. The offered product is incorporated with advanced features that ensure regulated voltage output as per the requirement of the electronic equipment for which it is used. To meet the variegated demands of clients, we offer Air Cooled Servo Stabilizer in both standard and customized specifications.

Features:

Stable voltage adjustment
Light weight
No wave distortion
Longer functional life

Other details:

Input	170vac - 270vac
Output	220vac + / - 0.5 - 1%
[Other Input Output Range Available On Request]
Frequency	50 Hz +/- 1 %
Rate of Correction	35v/sec.
Effciency	> 95 %
Power Factor	0.7 - unity
Distortion	Nil
Cooling	Natural
KVA Rating	0.5 - 10.0
Wave Form	Sinusoidal
Protections Short Circuit: Fuse / MCB Over Load: Fuse / MCB MFD Circuit: Built in Surge/Spike: Optional Time Delay: Optional Hi / Lo Cut Out: Optional
Indications: Power ON Input High Input Low Mains OK Fuse/MCB Blown/Trip
Features: Auto/Manual Facility Of Operation Built in Over load/short Ckt. Protection Improves Power Factor Ergonomically Rugged Construction Powder Coated Cabinet Isolated Output Available
Application: Computer, Xerox Machines, CNC Machine Photo Labs, PLCs, Water Purifying Plants Glass Cutting Machines, Medical Instruments Die Making Machines
Physical Size KVA	1.0	5.0	10.0
Weight	13	27	65
DimensionWxDxM [MM] {Approx}	250 x 320 x 165	280 x 345 x 230	255 x 300 x 540

Advanced Automatic Voltage Regulation

This Air Cooled Servo Stabilizer employs a sophisticated automatic control system that continuously adjusts voltage levels to maintain optimal output. The technology prevents equipment overheating and damage, ensuring consistent performance even during power irregularities. The stabilizers LED display provides clear insight into input and output voltage readings, offering peace of mind and convenient monitoring at a glance.

Versatile Applications Across Industries

Designed for single-phase systems operating at 220-240 volts, this servo stabilizer is an asset in diverse settings such as homes, offices, medical establishments, and small manufacturing units. Its robust build and efficient air-cooled mechanism make it suitable for environments where dependable power is crucial. Partnering with leading Indian exporters and service providers ensures superior after-sales support and accessibility nationwide.

FAQs of Air Cooled Servo Stabilizer:

Q: How does the automatic control system in the Air Cooled Servo Stabilizer function?

A: The automatic control system continuously detects incoming voltage fluctuations and adjusts the output voltage in real-time. This process ensures that your equipment receives a consistent 220-240V supply, safeguarding devices against electrical surges and drops.

Q: What are the main benefits of using this Air Cooled Servo Stabilizer with LED display?

A: Major benefits include real-time voltage monitoring via the LED display, enhanced protection for your appliances, improved equipment lifespan, and reduced maintenance costs due to automatic, precise voltage regulation.

Q: When is it advisable to install a servo stabilizer like this one?

A: Installation is recommended when you observe frequent voltage fluctuations or experience equipment malfunction due to inconsistent power. Early installation can prevent costly damage and downtime, especially in sensitive settings like medical labs or offices.

Q: Where can this stabilizer be used effectively?

A: This single-phase servo stabilizer is effective in homes, commercial spaces, small factories, and healthcare facilities where a stable voltage supply is essential for uninterrupted operation of sensitive devices.

Q: What is the process for purchasing and installing the stabilizer in India?

A: You can purchase the stabilizer through authorized exporters, manufacturers, suppliers, traders, or service providers across India. Once acquired, professional installation is recommended to ensure optimal setup and functioning.

Q: How does the warranty benefit customers?

A: The included warranty provides assurance against manufacturing defects and covers repair or replacement services during the warranty period, minimizing risks and ensuring reliable support.

Q: How should users monitor and operate the stabilizer for best results?

A: Users should regularly check the LED display to monitor voltage status and ensure that the stabilizer is kept in a well-ventilated location for efficient cooling. Minimal manual intervention is required thanks to the automatic control system.
